PROFESSIONAL PHENOLIC DRIVER NEODYMIUM HIGH COMPRESSION 4" VOICE COIL 350 WRMS

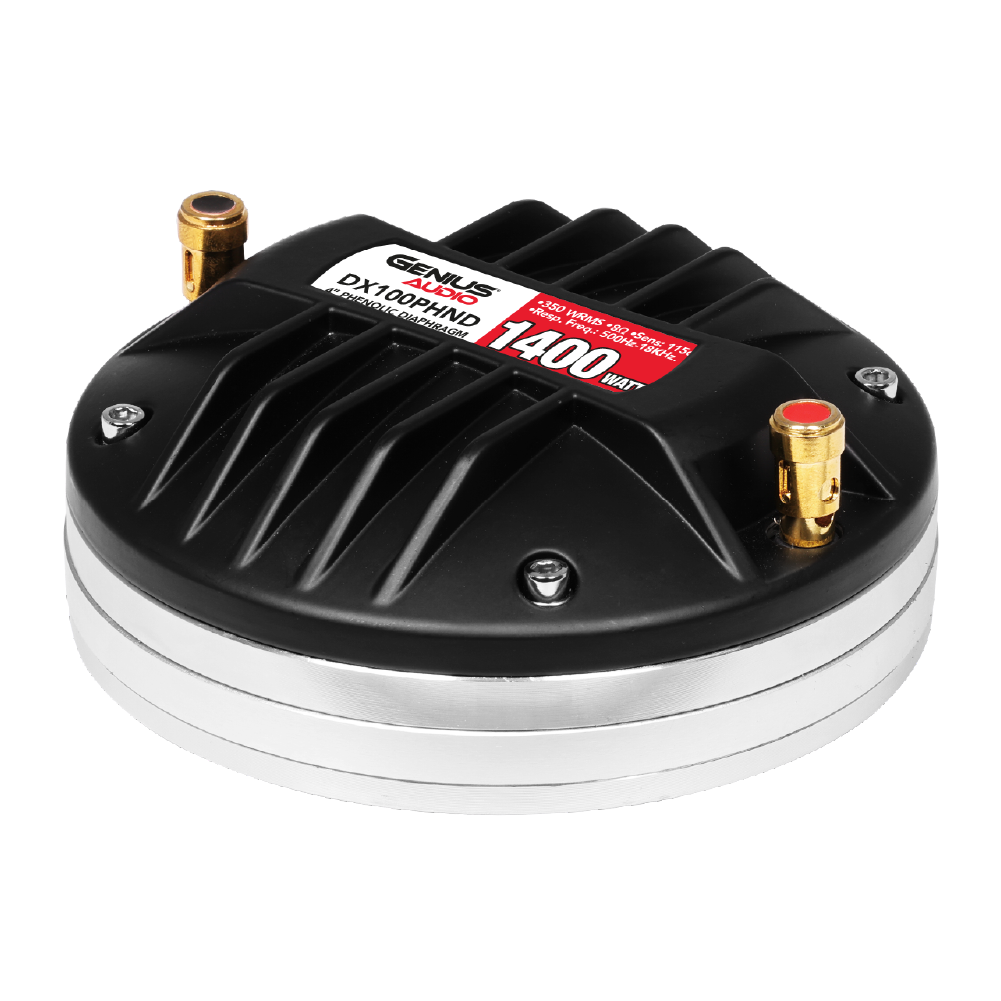

 DX100PHND Professional Driver

The DX100PHND by Genius Audio is a professional high-compression phenolic driver designed for high-performance audio systems. It features a powerful Neodymium N42 magnet and an aluminum body, delivering high sensitivity and robust power handling in a compact "Bolt-On" installation format.

Key Technical Features:

• Voice Coil: 4" (101.6mm) diameter using aluminum wire and a Kapton® former.
• Power Handling: 350 Watts RMS (AES), 700 Watts Program, and up to 1400 Watts Peak.
• Sensitivity: High efficiency at 110dB (1w/1m).
• Frequency Response: Operates within a range of 500Hz to 7KHz.
• Diaphragm: Constructed with high-quality phenolic material.
• Magnet: Utilizes a Neodymium N42 motor for superior magnetic flux.
• Exit Throat Diameter: Standard 2" (50.8mm).
• Nominal Impedance: 8 Ohms.
• Recommended Crossover: 560Hz with a 12dB/Oct high pass filter.
• Physical Dimensions: Overall diameter of 154mm (6.06in) and a depth of 60mm (2.36in).
• Weight: Net weight of 8.38Lbs (3.80Kg).
