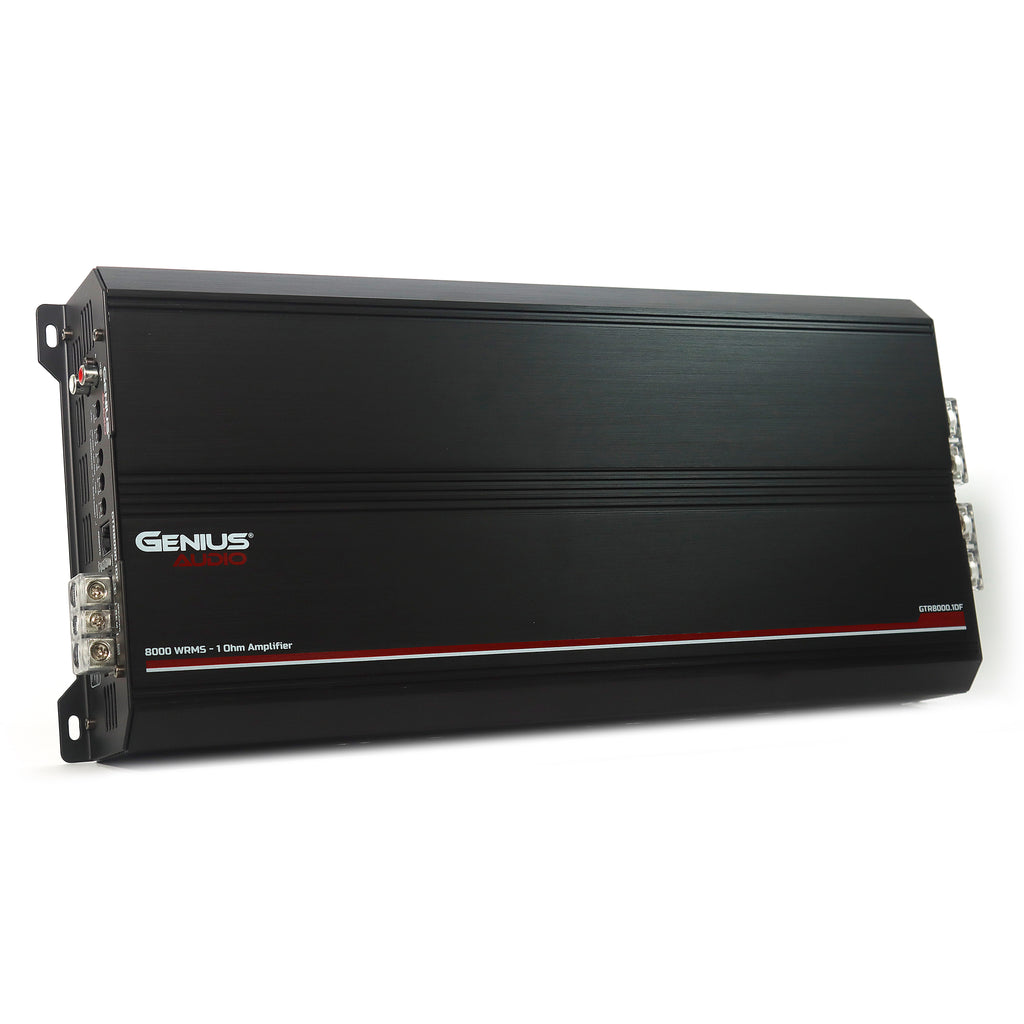

GTR 8000.1D AMPLIFIER FULL RANGE MONOBLOCK AMPLIFIER CLASS D

Upgrade your car audio system to extreme performance with the GENIUS AUDIO GTR8000.1DF Class D Full Range Monoblock Amplifier. This amplifier is built with high-standard technology, delivering superior signal quality, definition, and linearity for the highest possible audio performance at maximum power. It is a fully digital amplifier, both in its power supply and amplification stages, boasting an efficiency of 91%. This advanced design ensures minimal current draw while providing massive power output (up to 8360 Watts RMS @ 1 Ohm, 14.4V) and generating less heat than traditional amplifiers. Its 1 Ohm stable mono configuration is ideal for driving multiple, highly demanding subwoofers or speakers, making it suitable for both high-fidelity listening and serious competition.

The GTR8000.1DF features versatile and selectable Band-Pass Crossover functionality, including HPF (10Hz - 90Hz) and LPF (90Hz - 10KHz), allowing it to be used with virtually any speaker type. You can precisely tune your sub-bass frequencies using the adjustable Bass Boost Frequency (35Hz - 55Hz) and Bass Boost (0-10dB) controls for a deeper, personalized, and immersive sound experience. Safety and longevity are guaranteed by the Smart Cooler intelligent fan system and a complete suite of protection circuits. The amplifier requires heavy-duty wiring (1/0 AWG to 2/0 AWG for power/ground) and includes a Remote Control accessory for real-time gain adjustment.

Key Technical Features and Utility:

• Maximum RMS Power Output: Delivers up to 8360 Watts x 1CH @ 1 Ohm (14.4V).
  • Utility: Provides immense, reliable power necessary to drive multiple high-demand subwoofers or speakers, guaranteeing extreme volume and the deepest bass performance.
• High Efficiency Class D Full-Range Amplifier: Fully digital design with 91% efficiency.
  • Utility: Maximizes power conversion while minimizing heat generation and current consumption (Max Musical Consumption: 395 Amp @ 12.6V), protecting the vehicle's electrical system. Its full-range capability supports all speaker types.
• 1 Ohm Stable Mono Connection: Minimum impedance connection of 1 Ohm.
  • Utility: Offers maximum flexibility in wiring multiple speakers or dual voice coil subwoofers in parallel, ensuring the full potential of the amplifier is utilized.
• Selectable Band-Pass Crossover (HPF & LPF): HPF is 10Hz to 90Hz (Subsonic Filter) and LPF is 90Hz to 10KHz.
  • Utility: Enables precise acoustic tuning; the HPF acts as a Subsonic filter to protect subwoofers from damaging frequencies, while the wide LPF range allows for full-range system configuration.
• Adjustable Bass Boost: Features 0-10dB boost at a selectable frequency range of 35Hz to 55Hz.
  • Utility: Allows the user to customize and intensify the depth and impact of the sub-bass frequencies for a tailored and more powerful listening experience.
• Smart Cooler Thermal Management: Includes an intelligent, temperature-controlling fan system.
  • Utility: Actively stabilizes the internal temperature, guaranteeing higher thermal efficiency, a longer product lifespan, and quieter operation under normal load.
• Wide Input Sensitivity Range: Adjustable from 0.28V to 8V.
  • Utility: Ensures proper gain matching with virtually any head unit or audio source on the market, minimizing distortion and maximizing sound quality.
• Heavy-Duty Power Input: Requires 1/0 AWG to 2/0 AWG power cables and a 2 x 200 Amp external fuse.
  • Utility: Accommodates the extreme current draw necessary for maximum power output, ensuring the electrical system safely and efficiently supplies the amplifier.
