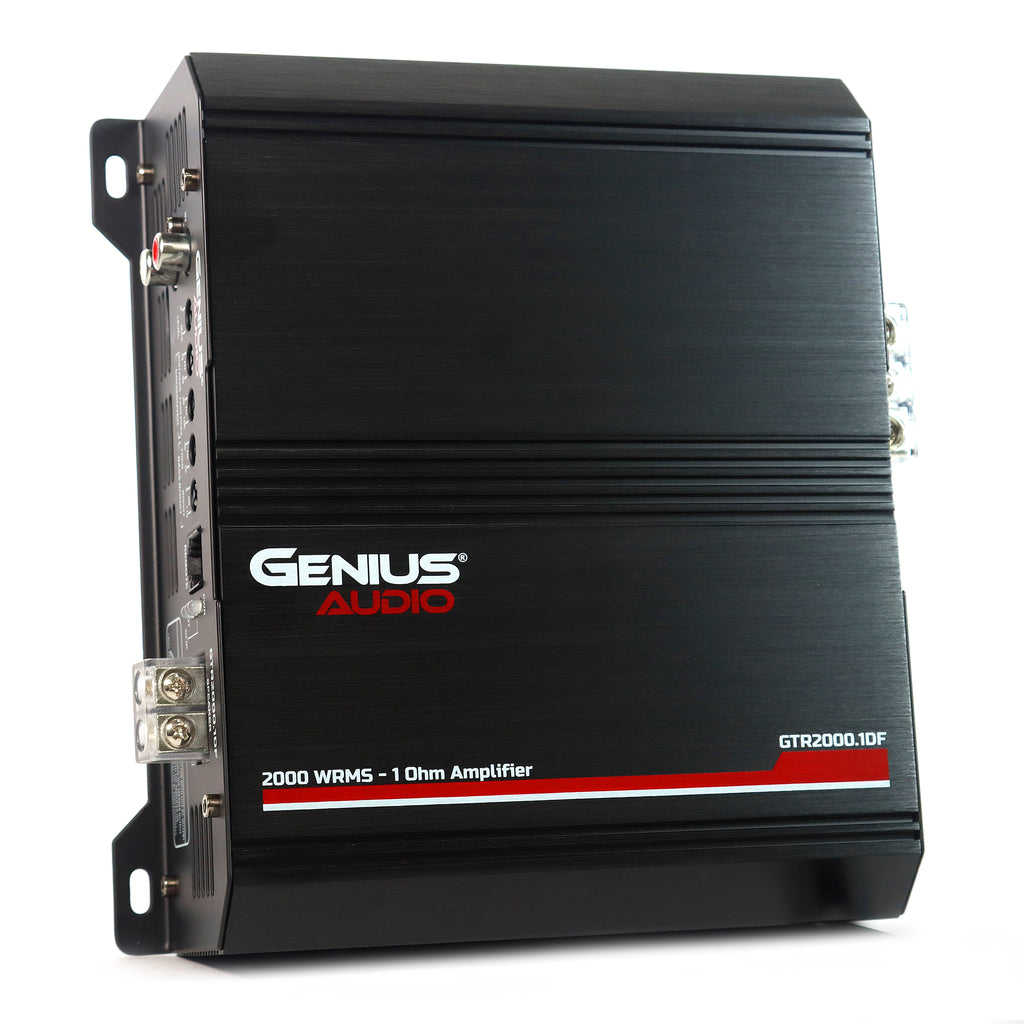

GTR 2000.1D AMPLIFIER FULL RANGE MONOBLOCK AMPLIFIER CLASS D 2000 W RMS

The GTR2000.1DF is a fully digital amplifier, both in its power supply and amplification stages, boasting an efficiency of 93% (over 85%). This advanced design ensures very low current consumption and minimal heat generation while providing substantial power output (up to 2037 Watts RMS @ 1 Ohm, 14.4V). Its 1 Ohm stable mono configuration is perfect for driving multiple subwoofers or speakers with demanding power requirements.

Featuring comprehensive and selectable Band-Pass Crossover capabilities, including an HPF (High Pass Filter) from 10Hz to 90Hz and an LPF (Low Pass Filter) from 90Hz to 10KHz, the GTR2000.1DF is versatile enough to be used with virtually any type of speaker—such as tweeters, drivers, midbass, woofers, and subwoofers. The adjustable Bass Boost Frequency (35Hz - 55Hz) and Bass Boost (0-10dB) controls give you the power to fine-tune your sub-bass frequencies for a deeper, more impactful, and immersive sound experience.

Safety and longevity are prioritized with its Smart Cooler intelligent temperature-controlling fan system and a robust protection suite against short circuits, low impedance, and voltage fluctuations. Required installation wiring is heavy-duty (4 AWG to 2 AWG for power/ground, 150 Amp external fuse recommended). The included Remote Control accessory allows for real-time, convenient adjustment of the amplifier's gain from the driver's seat.

Key Technical Features and Utility:

• RMS Power Output: Delivers up to 2037 Watts x 1CH @ 1 Ohm (14.4V).
  • Utility: Provides robust and clean power to drive high-demand subwoofers or speakers, guaranteeing powerful bass and high-volume capability.
• High Efficiency Class D Full-Range Amplifier: Fully digital design with 93% efficiency.
  • Utility: Minimizes current draw (Max Musical Consumption: 102 Amp @ 12.6V) and heat generation compared to analog amplifiers, protecting the vehicle's electrical system. Its full-range capability means it can amplify all speaker types.
• 1 Ohm Stable Mono Connection: Minimum impedance connection of 1 Ohm.
  • Utility: Offers maximum flexibility in wiring configurations to connect multiple speakers or dual voice coil subwoofers in parallel, maximizing the amplifier's power output.
• Selectable Band-Pass Crossover (HPF & LPF): HPF is adjustable from 10Hz to 90Hz (Subsonic Filter) and LPF from 90Hz to 10KHz.
  • Utility: Enables precise acoustic tuning to cut unwanted, damaging low frequencies (Subsonic) or configure the amplifier for full-range applications, protecting speakers and optimizing sound quality.
• Adjustable Bass Boost: Features a 0-10dB boost at a selectable frequency range of 35Hz to 55Hz.
  • Utility: Allows the user to customize and intensify the depth and impact of the sub-bass frequencies for a more powerful and personalized listening experience.
• Smart Cooler Thermal Management: Includes an intelligent temperature-controlling fan system.
  • Utility: Actively stabilizes the internal temperature, ensuring higher thermal efficiency, a longer product lifespan, and quieter operation under normal conditions.
• Power Wire Input: Requires 4 AWG to 2 AWG cables.
  • Utility: Accommodates the significant current draw required for maximum power output, ensuring the electrical system can safely supply the amplifier.

Download Manual Product
