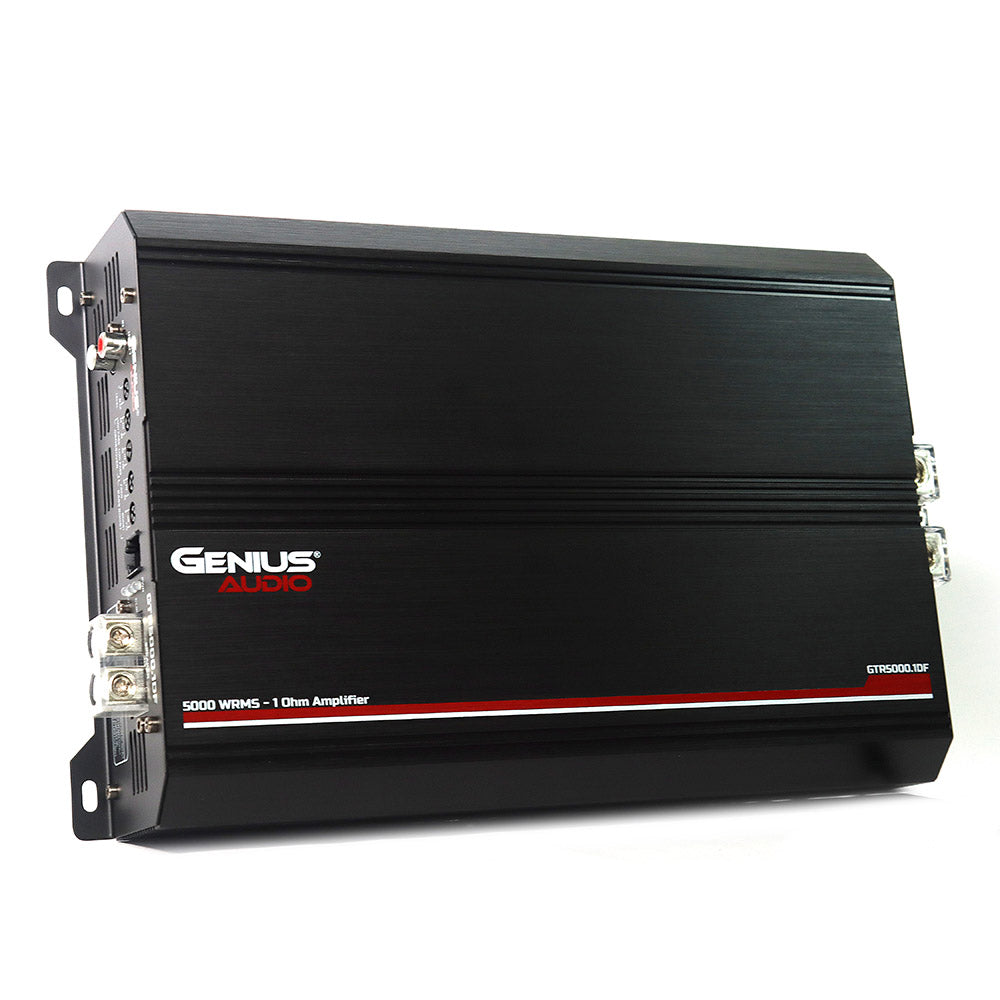

GTR 5000.1D AMPLIFIER FULL RANGE MONOBLOCK AMPLIFIER CLASS D

The GTR5000.1DF is a fully digital amplifier in both its power supply and amplification stages, boasting an efficiency of over 85%. This advanced design results in minimal current consumption while providing immense power output and generating very little heat. Its 1 Ohm stable mono design is perfect for driving multiple subwoofers or speakers with demanding power requirements.

Featuring comprehensive HPF (High Pass Filter) and LPF (Low Pass Filter) capabilities, the GTR5000.1DF is versatile enough to be used with virtually any type of speaker—including tweeters, drivers, phenolic horns, midbass, woofers, and subwoofers—allowing you to tailor your audio system to your exact preferences. The built-in Bass Boost Frequency and Bass Boost controls give you the power to fine-tune your sub-bass frequencies for a deeper, more impactful, and immersive sound experience.

Installation is streamlined, with recommended wiring for maximum performance (1/0 AWG or 2/0 AWG for power and ground). Safety and longevity are prioritized with its Smart Cooler intelligent temperature-controlling fan system and a robust protection suite against short circuits, low impedance, and voltage fluctuations. The included Remote Control accessory allows for real-time, convenient adjustment of the amplifier's gain from the driver's seat.

Key Technical Features

• RMS Power Output: Provides up to 5190 Watts x 1CH @ 1 ohm Mono (14.4V).
  • Utility: Delivers massive, reliable power to drive multiple high-demand subwoofers or speakers, ensuring deep bass and high volume capability.
• Amplifier Class D, Full Range Monoblock: High-efficiency digital design.
  • Utility: Consumes less current and generates less heat than traditional analog amplifiers, while its full-range capability allows it to power a wide spectrum of speakers, not just subwoofers.
• 1 Ohm Minimum Impedance Connection: Stable at 1 ohm mono.
  • Utility: Offers flexibility in wiring multiple speakers/subwoofers in parallel to maximize the amplifier's power output.
• Selectable Band-Pass Crossover (HPF & LPF): Features HPF from 10Hz to 90Hz and LPF from 90Hz to 10KHz.
  • Utility: Allows for precise tuning and system configuration, whether you're using it for subwoofers (low-pass), tweeters/drivers (high-pass), or mid-range speakers (band-pass), protecting your speakers from unwanted frequencies.
• Bass Boost Range (0-10dB) and Frequency (35Hz - 55Hz): Adjustable bass enhancement.
  • Utility: Enables the user to customize the intensity and frequency of the sub-bass for greater impact and depth in the music.
• High Efficiency (91%): Excellent conversion of input power to output power.
  • Utility: Ensures more of your battery's power goes to sound, reducing strain on the vehicle's electrical system and minimizing heat.
• Smart Cooler (Temperature Controlling Fan): Intelligent thermal management system.
  • Utility: Stabilizes internal temperature, increasing the amplifier's thermal efficiency, prolonging its lifespan, and ensuring quiet operation until high temperatures are reached.
• Power Wire Input (1/0 AWG to 2/0 AWG) & Recommended Fuse (250 Amp Musical): Requires heavy-duty wiring and external fusing.
  • Utility: Accommodates the high current draw required for maximum power output, ensuring the electrical system can safely and effectively supply the amplifier.
• Input Sensitivity (0.28V - 8V): Wide range of input level control.
  • Utility: Allows for proper gain matching with virtually any head unit or source on the market, minimizing distortion and maximizing sound quality.
