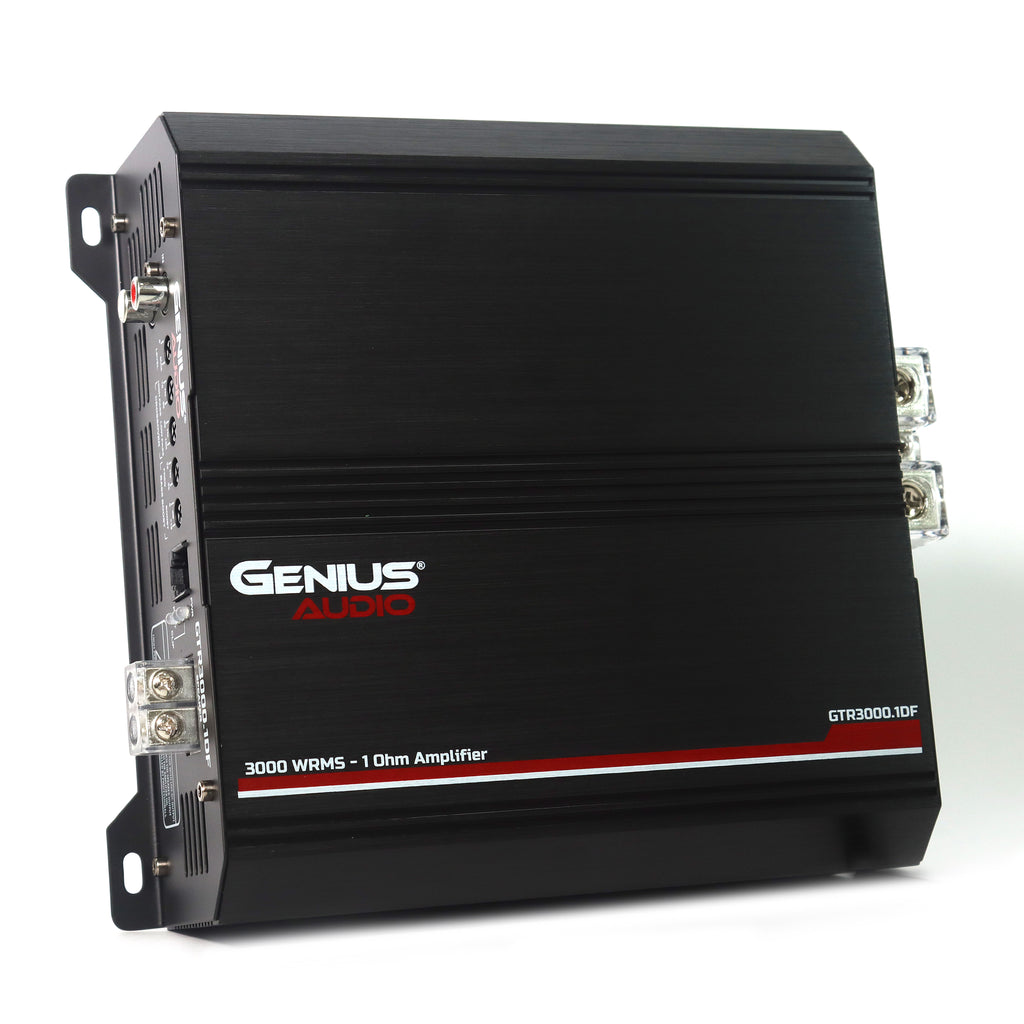

The GTR3000.1DF boasts an efficiency of 89%, minimizing current draw while delivering immense power (up to 3150 Watts RMS @ 1 Ohm, 14.4V). Its 1 Ohm stable mono design is optimized for driving multiple demanding subwoofers or speakers.
This amplifier features versatile and selectable Band-Pass Crossover functionality, including HPF (10Hz - 90Hz) and LPF (90Hz - 10KHz), making it suitable for virtually any speaker type, from tweeters to subwoofers. Fine-tune your bass frequencies with the adjustable Bass Boost Frequency (35Hz - 55Hz) and Bass Boost (0-10dB) controls for a deeper, more tailored sound experience.
Integrated with a Smart Cooler intelligent fan system and a full suite of protection circuits, the GTR3000.1DF ensures reliability and longevity. It requires heavy-duty wiring (1/0 AWG to 2/0 AWG for power/ground) and includes a Remote Control accessory for convenient, real-time gain adjustment.
Key Technical Features and Utility:
-
High RMS Power Output: Provides up to 3150 Watts x 1CH @ 1 Ohm (14.4V).
-
Utility: Delivers enormous, reliable power for multiple high-demand subwoofers or speakers, guaranteeing extreme bass and high-volume performance.
-
Class D Full-Range Efficiency: Fully digital design with 89% efficiency.
-
Utility: Minimizes power consumption (Max Musical Consumption: 165 Amp @ 12.6V) and heat generation compared to analog amps. Its full-range capability supports all speaker types.
-
1 Ohm Stable Mono: Minimum impedance connection of 1 Ohm.
-
Utility: Offers maximum wiring flexibility to parallel multiple speakers/subwoofers, ensuring you utilize the amplifier's full power capability.
-
Selectable Band-Pass Crossover (HPF & LPF): HPF is 10Hz to 90Hz (Subsonic Filter) and LPF is 90Hz to 10KHz.
-
Utility: Allows for precise acoustic tuning; the HPF acts as a Subsonic filter to protect subwoofers, while the wide LPF range allows for full-range system configuration.
-
Adjustable Bass Boost: Features 0-10dB boost at 35Hz to 55Hz.
-
Utility: Enables customization of sub-bass intensity and frequency for a deeper, personalized, and more impactful bass response.
-
Smart Cooler Thermal Management: Includes an intelligent temperature-controlling fan system.
-
Utility: Actively stabilizes internal temperature, maximizing thermal efficiency, extending the amplifier's lifespan, and ensuring quiet operation under normal load.
-
Heavy-Duty Power Input: Requires 1/0 AWG to 2/0 AWG power cables.
-
Utility: Accommodates the high current draw necessary for maximum power output, ensuring the system safely and efficiently supplies the amplifier.
