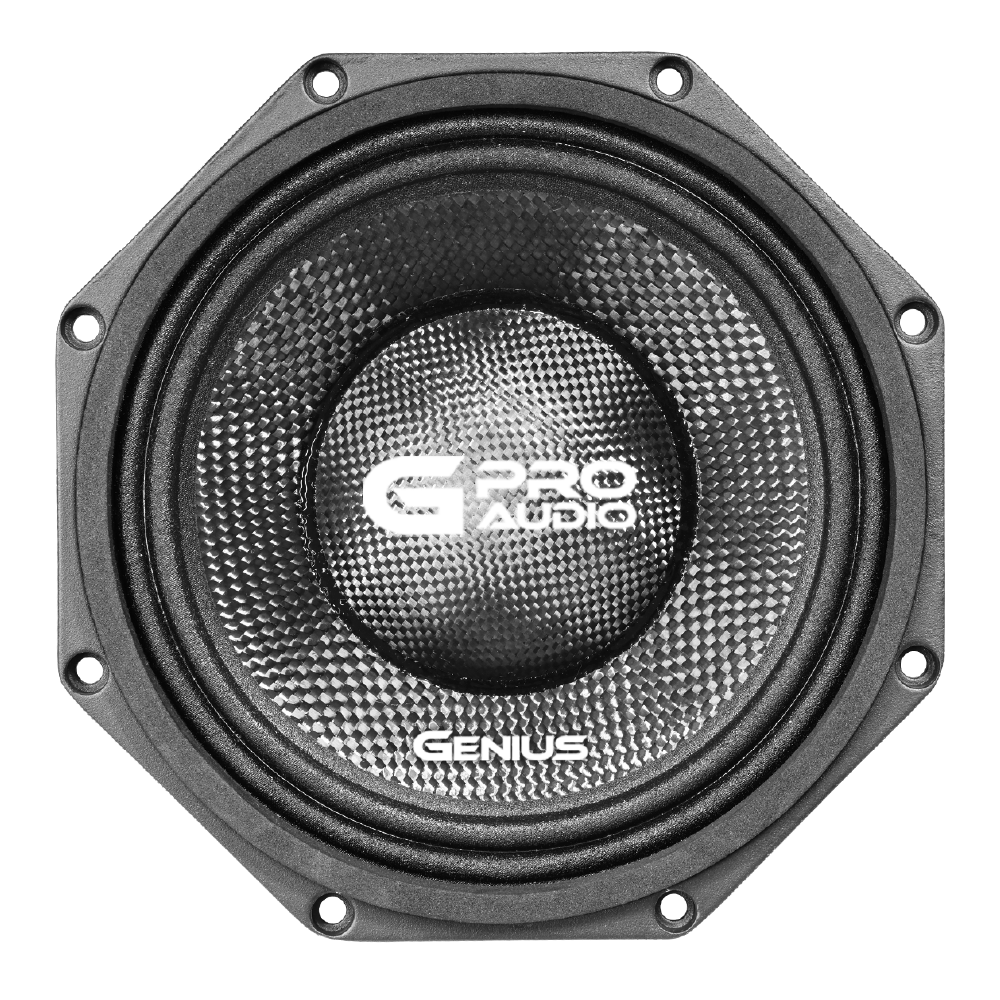

8” OCTAGONAL MIDBASS LOUDSPEAKER WITH CARBON FIBER CONE WATER RESISTANT

The GENIUS AUDIO MBX138C is a high-performance 8-inch octagonal midbass loudspeaker engineered for powerful low-mid frequency reproduction and exceptional durability. This model features a high-strength Carbon Fiber cone and is designed to be water-resistant, making it ideal for demanding audio environments. Key technical specifications include massive power handling of 600 Watts RMS (1200 Watts MAX), driven by an oversized 3" Voice Coil for superior thermal stability. It achieves a notable 94.7 dB Sensitivity and utilizes a heavy-duty Ferrite Y30 magnet (69 Oz.) to deliver deep, punchy midbass down to 80Hz, extending up to 5KHz. Built on a rigid Cast Aluminum basket and finished in black painted and CNC design, the MBX138C is the definitive choice for high-end car audio and professional systems where powerful, clear, and durable midbass is essential.

Technical Characteristics:

• Power & Sensitivity: High 600 Watts RMS / 1200 Watts MAX handling with 94.7 dB Sensitivity.
• Voice Coil: Oversized 3" (76.2 mm) CCAW voice coil on a Kapton® former for maximum heat dissipation and power endurance.
• Cone Material: Water-resistant Carbon Fiber cone and dust cap for superior rigidity and sound accuracy.
• Magnet System: Heavy-duty 69 Oz. Ferrite Y30 Magnet for robust motor strength and control.
• Structure: Rigid Cast Aluminum Octagonal Basket and Cloth Surround.
• Frequency Range: Optimized for midbass/midrange response (80Hz - 5KHz).
• Mounting Depth: 89 mm / 3.5 in.
• Recommended Crossover: High Pass at 136Hz @ 12dB/Oct.

• Deep and Punchy Midbass: The 8-inch size and powerful motor structure excel at delivering strong, defined low-mid frequencies (midbass), adding impact and depth to your music.
• Extreme Power Handling: With 600W RMS capacity and a large 3" voice coil, this speaker is built to handle the highest-output amplifiers without thermal failure or distortion, ensuring reliable performance.
• Superior Durability: The water-resistant Carbon Fiber cone material provides exceptional longevity and reliability, especially in challenging automotive environments exposed to moisture.
• Clear and Accurate Sound: The stiff Carbon Fiber cone reduces cone flex, ensuring that the sound remains clean and accurate across its frequency range.
• Professional-Grade Build: The robust Cast Aluminum basket provides a solid, non-resonant foundation, essential for achieving professional-grade sound quality.
