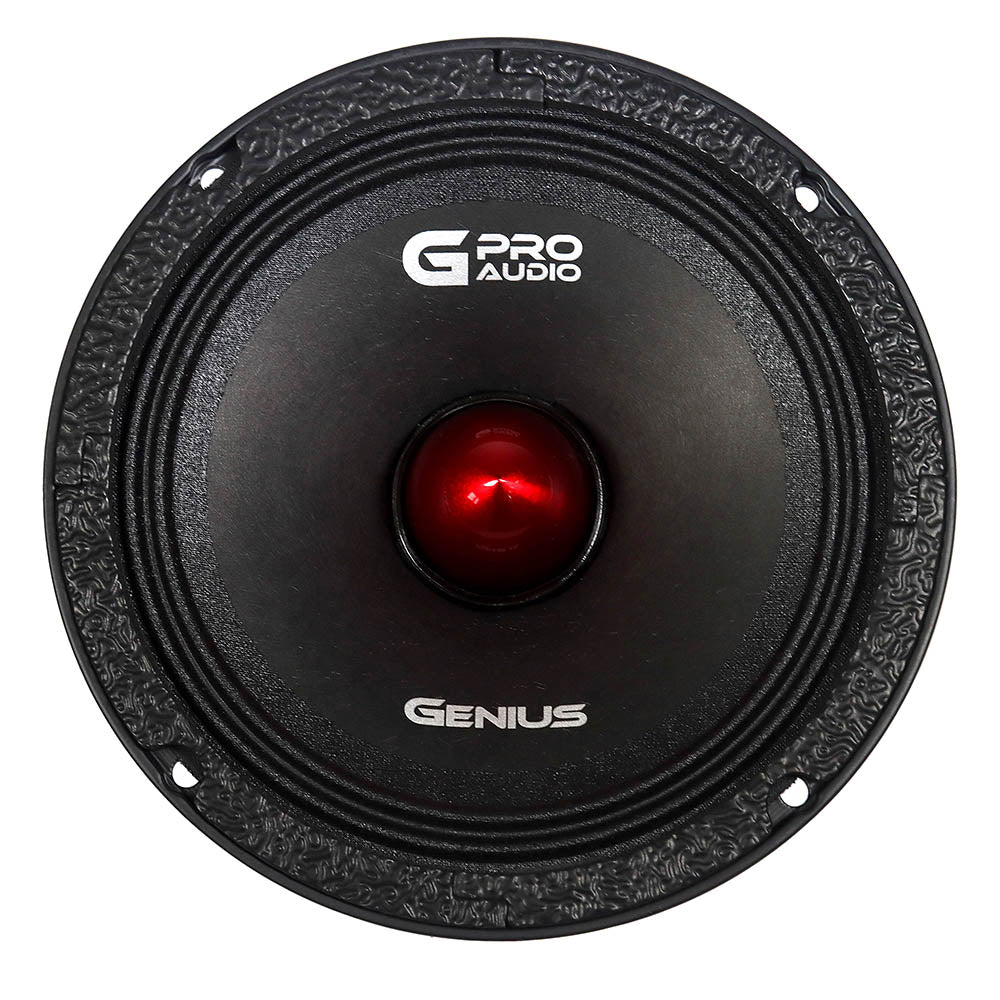

6.5'' MIDRANGE NEODYMIUM LOUDSPEAKER WITH BULLET 500WMAX

Elevate your car audio experience to an unprecedented level with the GENIUS AUDIO MR665ND, a 6.5" professional neodymium midrange bullet loudspeaker engineered for superior sound reproduction. This speaker combines cutting-edge technology with robust construction, delivering exceptionally clear, powerful, and precise midrange frequencies.

Key Features & Commercial Benefits:

• Unrivaled Power Handling: Boasting a formidable 250 Watts RMS, 500 Watts MAX, and a staggering 1000 Watts PEAK power handling, the MR665ND ensures your music is not just heard, but felt. Experience dynamic range and powerful output without distortion, even at high volumes.
• Exceptional Sensitivity for Maximum Impact: With an impressive sensitivity of 97.4dB (1w/1m), this loudspeaker efficiently converts amplifier power into sound, providing incredible volume and clarity. You'll get more sound per watt, maximizing your amplifier's performance.
• Precision Engineered for Clarity: Featuring a 1.5" voice coil, a durable paper cone, a cloth surround, and an aluminum bullet, the MR665ND is designed for optimal sound dispersion and vocal clarity. Every note and lyric will come through with stunning accuracy.
• Lightweight Neodymium Magnet: The use of a powerful Neodymium N38 magnet (6.6 Oz.) significantly reduces the overall weight of the speaker without compromising magnetic force. This not only makes installation easier but also contributes to the speaker's responsiveness and dynamic performance.
• Durable Aluminum Basket: Built with a sturdy aluminum basket, finished in a sleek black paint, this speaker is engineered for longevity and optimal acoustic performance by minimizing unwanted resonances.
• Slim Profile for Versatile Installation: With an overall depth of 73mm (2.87in) and a mounting depth of 65mm (2.56in), this professional-grade speaker offers a relatively slim profile, making it suitable for a wide range of custom installations in your vehicle.

Technical Specifications:

• Nominal Diameter: 6.5" (165 mm)
• Nominal Impedance: 4 Ohm
• Power Handling (RMS): 250 Watts
• Power Handling (MAX): 500 Watts
• Power Handling (PEAK): 1000 Watts
• Sensitivity (1w/1m): 97.4dB
• Recommended High Pass Crossover: 190Hz (12dB/Oct.)
• Frequency Response: 148Hz - 13KHz
• Voice Coil Diameter: 1.5" (38.1 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton®
• Cone Material: Paper
• Dust Cap Material / Bullet Material: Aluminum
• Surround Material: Cloth
• Basket Material: Aluminum
• Basket Color Finish: Black Painted
• Magnet Material: Neodymium - N38
• Magnet Weight: 6.6 Oz.
• Overall Diameter: 170 mm / 6.70 in
• Front Mount Baffle Cutout: 150 mm / 5.91 in
• Overall Depth: 73 mm / 2.87 in
• Mounting Depth: 65 mm / 2.56 in
• Net Weight: 2.65 Lbs (1.20 Kg)

Thiele Small Parameters:

• Dc Resistance (Re): 3.2 Ohm
• Free Air Resonance (Fs): 158 Hz
• Equivalent Volume (Vas): 4.233 Liters
• Mechanical Factor (Qms): 5.626
• Electrical Factor (Qes): 0.483
• Total Factor (Qts): 0.445
• Cone Area (Sd): 139.1 cm²
• Mechanical Mass (Mms): 6.572 g
• Mechanical Compliance (Cms): 0.154 mm/N
• Bl Factor (BI): 6.579 Tm
• Inductance (Le): 0.517 mH - 1KHz
• Linear Excursion Max (Xmax): 2.7 mm

The GENIUS AUDIO MR665ND is the ultimate choice for serious audio enthusiasts and professionals seeking a high-performance midrange loudspeaker that delivers unparalleled clarity, power, and precise vocal reproduction. Upgrade your sound system and experience the difference that true audio engineering makes.
