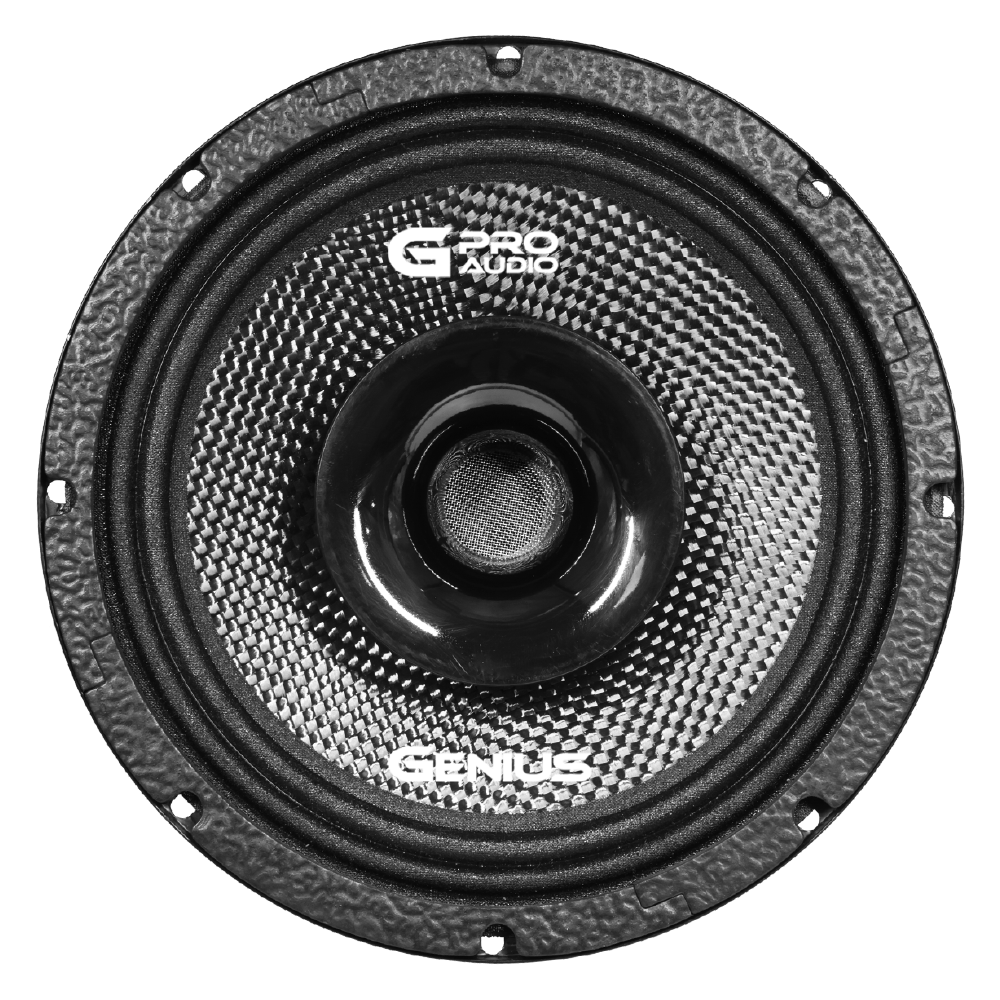

6.5” SLIM LOUDSPEAKER HYBRID WITH CARBON FIBER AND 1” COMPRESSION DRIVER HORN

Elevate your audio system with the Genius Audio MRH65.2CP, a 6.5-inch hybrid loudspeaker designed for professional-grade performance. This unique speaker combines a high-sensitivity midrange woofer with an integrated 1-inch compression driver horn, offering a full frequency range from 135Hz to 20KHz. Featuring a durable, water-resistant carbon fiber cone, this slim loudspeaker delivers powerful sound and exceptional clarity, making it ideal for custom installations and extreme environments.

Key Technical Specifications:

• Nominal Diameter: 6.5" (165 mm)
• Nominal Impedance: 4 Ohms
• Power Handling (RMS/MAX/PEAK): 300 Watts RMS / 600 Watts MAX / 1200 Watts PEAK
• Sensitivity (1w/1m): 96 dB
• Frequency Response: 135Hz - 20KHz
• Voice Coil Diameter: 1.5" (38.1 mm)
• Magnet Material: Ferrite Y30
• Magnet Weight: 21 Oz.
• Mounting Depth: 73.2 mm / 2.88 in
• Overall Depth: 82 mm / 3.23 in
• Front Mount Baffle Cutout: 144 mm / 5.67 in

Technical Features & Qualities:

• Hybrid Design: Combines a mid-range speaker and an integrated 1" compression driver horn into a single unit, providing a wide, smooth frequency response (135Hz - 20KHz) and high output.
• High Power Handling: Capable of handling 300 Watts RMS, ensuring powerful, sustained performance without distortion.
• Exceptional Sensitivity (96 dB): Extremely efficient at converting power into sound, delivering high volume levels with less power consumption.
• Water-Resistant Carbon Fiber Cone: The durable carbon fiber cone material provides rigid, lightweight performance and superior resistance to moisture, ideal for harsh environments.
• Durable Voice Coil: Equipped with a 1.5" CCAW voice coil on a high-temperature Kapton® former for reliability and thermal endurance.
• Slim Profile: The relatively slim mounting depth (2.88 inches) simplifies installation in various vehicle doors and panels.
• Robust Motor Structure: Utilizes a heavy 21 Oz. Ferrite Y30 magnet and a black-painted steel basket for maximum stability and longevity.
• Easy Crossover Integration: Recommended High Pass Crossover of 180Hz (12dB/Oct.) ensures optimal performance and protects the driver.
