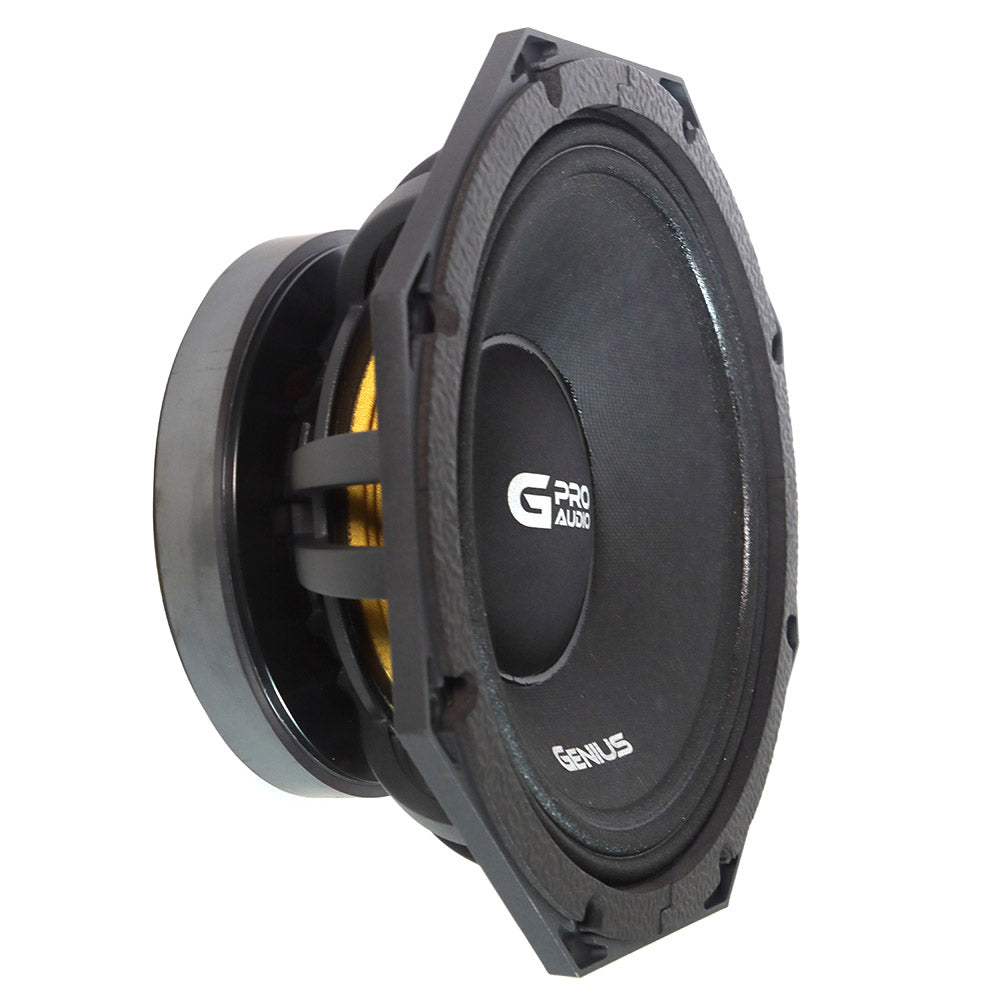

10” OCTAGONAL MIDBASS LOUDSPEAKER 1200 W MAX

The MBX0910 is a high-performance 10-inch midbass loudspeaker designed to deliver deep, commanding punch across the low-mid frequencies. Built for serious audio systems, this speaker boasts a robust 3-inch voice coil, a massive 69 Oz. Ferrite magnet, and handles an impressive 1200 Watts MAX power. Its optimized design ensures accurate midbass reproduction, making it the perfect foundation for high-output setups.

Technical Specifications:

• Nominal Diameter: 10" (254 mm) Octagonal Design.
  • Benefit: Large diameter provides increased cone area for greater sound output and deeper midbass response.
• Power Handling: 600 Watts RMS / 1200 Watts MAX / 2400 Watts Peak.
  • Benefit: High power capacity guarantees robust and reliable performance under high demand, ensuring loud, sustained output.
• Voice Coil: 3" (76.2 mm) diameter with CCAW wire on a Kapton® former.
  • Benefit: Large, high-temperature voice coil significantly increases power handling and improves heat dissipation for enhanced durability.
• Nominal Impedance: 4 Ohm.
  • Benefit: Standard impedance simplifies integration and effective pairing with most car audio amplifiers.
• Sensitivity (1w/1m): 97 dB.
  • Benefit: Extremely high sensitivity efficiently converts amplifier power into loud, clean sound, achieving high volume levels effortlessly.
• Frequency Response: 85Hz - 6KHz.
  • Benefit: Optimized range for powerful and deep midbass frequencies, adding significant punch and depth to the audio experience.
• Magnet Material: Ferrite Y30 with a weight of 69 Oz.
  • Benefit: Heavy-duty magnet assembly provides a powerful motor force for excellent cone control and high efficiency.
• Cone/Surround Material: Paper Cone and Cloth Surround.
  • Benefit: Lightweight yet robust materials provide quick transient response and controlled excursion for accurate low-frequency reproduction.
• Basket Material: Cast Aluminum.
  • Benefit: Rigid frame minimizes structural flexing and resonance, ensuring cleaner, distortion-free output.
• Mounting Depth: 4.49 in (114 mm).
  • Benefit: Managed depth for a 10" professional driver, suitable for various custom installation scenarios.
• Recommended High Pass Crossover: 125Hz (12dB/Oct.).
  • Benefit: Protects the driver from very low, damaging bass notes, maximizing longevity and optimizing performance for its intended midbass role.
• Thiele-Small Parameters (Fs: 71 Hz, Qts: 0.349):
  • Benefit: Parameters confirm excellent characteristics for robust midbass performance in appropriate enclosure designs.
