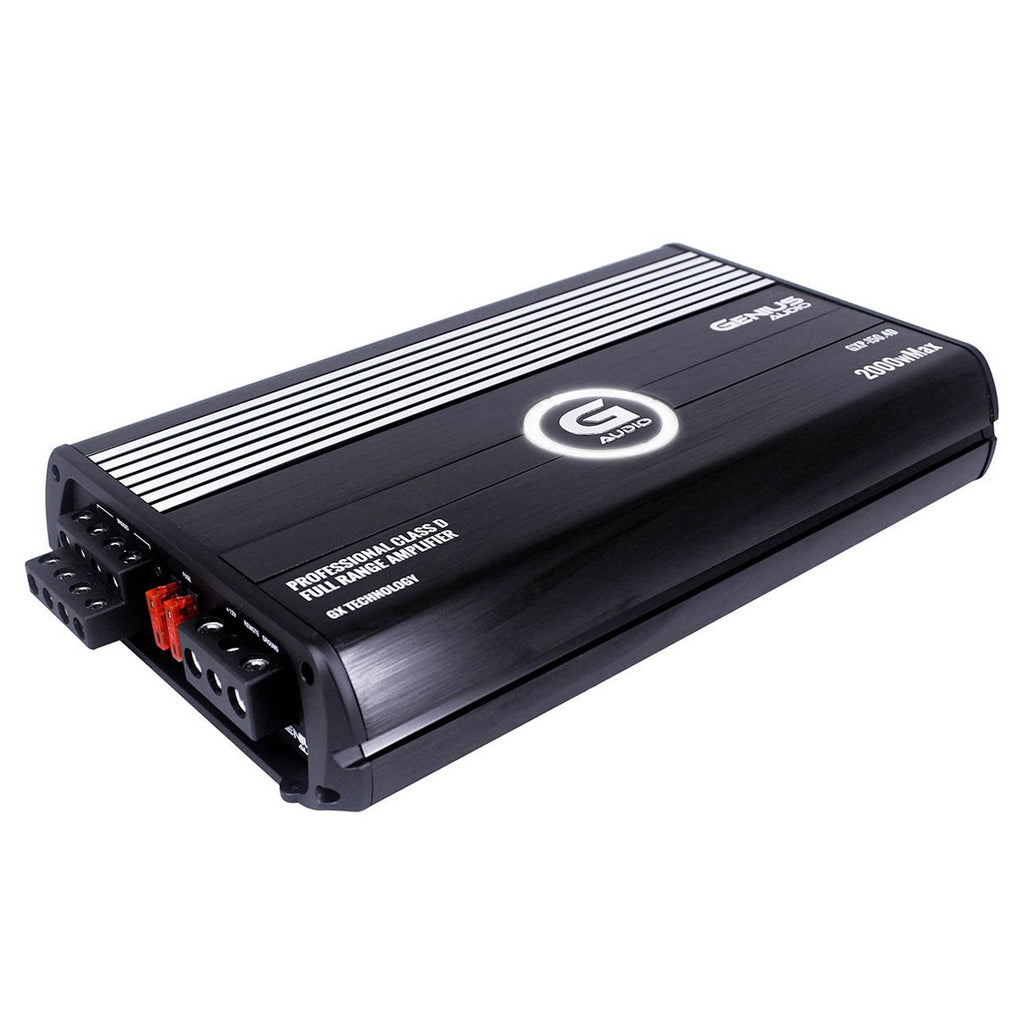

Genius Audio's GXP-150.4D Series of amplifiers have been designed to offer the same sound quality as the ones of A class amplifiers and the efficiency of D class ones. With very careful selection of high quality SMD electronic components, transformers that offer power stability, and a high-density heat sink, it becomes the perfect mix to deliver high fidelity, power and performance. This is why our GXP line of amplifiers will be able to meet the high standards of both world-class fanatics and competitors. The compact size of this amplifier stores massive power while keeping its low power consumption, temperature control, power and high fidelity more efficiently in any field whether it is for LPF, HPF or Full Range.
- FULL RANGE AMPLIFIER - COMPACT SERIES - CLASS D - 2Ohm STABLE STEREO - CHANNELS: 4 - PCB Layers: 4 - TOPOLOGY: CLASS-D - Chipset: IR - WATTS MAX @12.6V: 2000W - F/R CH. 4? Power Output @12.6V: 150Wx4 - F/R CH. 2? Power Output@12.6V: 250Wx4 - F/R CH. 4? Bridged Power Output @12.6V: 500Wx2 - TOTAL HARMONIC DISTORTION: <1% - INPUT SENSIVITY: 230MV-6.0V - SIGNAL/NOISE RATIO: 90dB - GAIN RANGE: 0.2-6V - X-OVER RANGE: 40-400Hz - X-OVER RANGE: 40-400Hz - Subsonic FREQUENCY: / - OPERATION EFFICIENCY: 85% - Full Power THERMAL TIME: >60MINS - DAMPING FACTOR: >200 - FREQUENCY RESPONSE: 20-20KHz - BASS BOOST: 0-18dB - PROTECTION SYSTEM: TEMP. / SHORT C. / H-L Vol. - MINIMUM SUPPLY VOLTAGE: 8.9V - MAXIMUM SUPPLY VOLTAGE: 16.7V - IDLE CONSUMPTION @ 12,6 VDC: 0.96A - MUSICAL MAXIMUM CONSUMPTION @ 12,6 VDC: 60A - FUSE SIZE: 40Ax2
