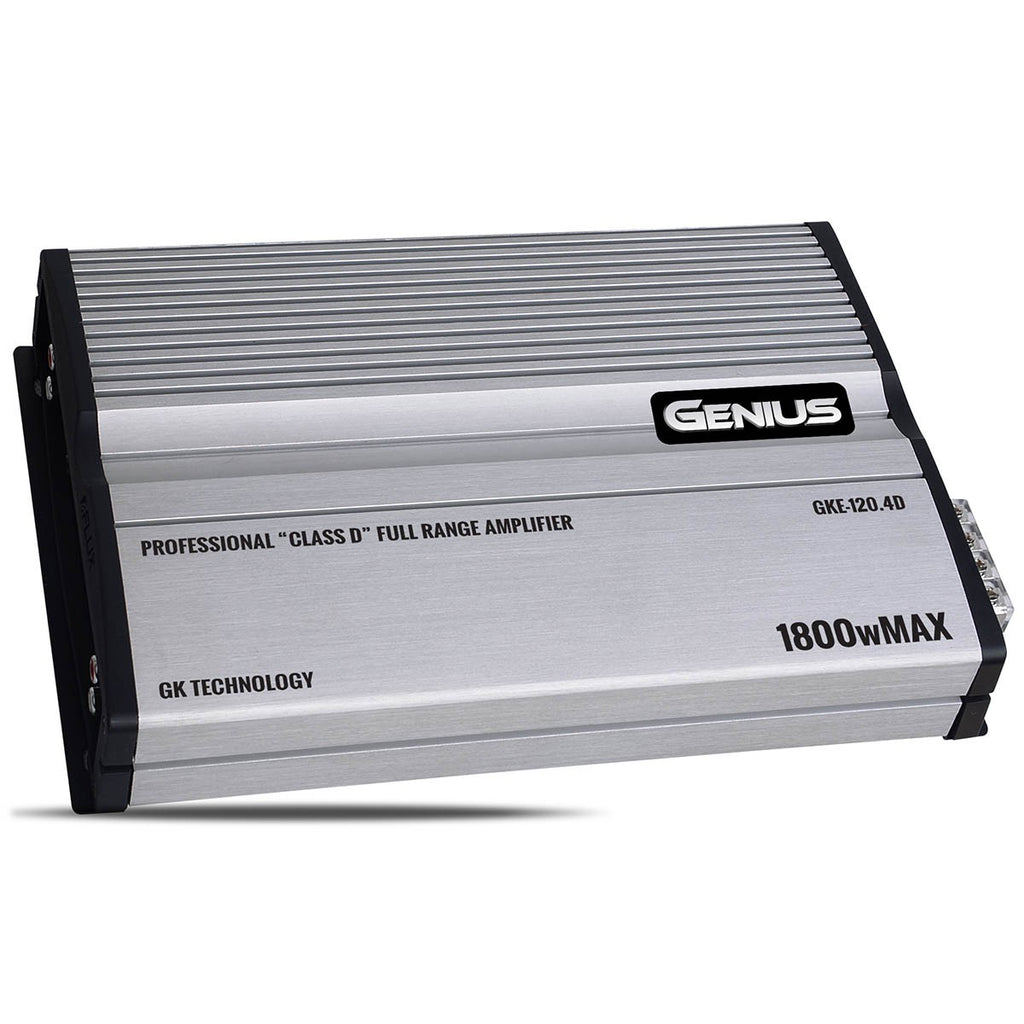

Genius Audio's line of GKE-120 amplifiers was designed to offer the same sound quality as the ones of A class amplifiers and the efficiency of D class ones. With very careful selection of high quality SMD electronic components, transformers that offer power stability, and a high-density heat sink. It also comes with a professional generation crossover, allowing to greatly raise the frequencies selected under both the HPF and LPF features (from 20 Hz up to 4000 kHz for HPF, and from 50 Hz up to 5000 kHz for LPF), allowing to manage the cutoff frequency of most speakers.
CHANNELS 4 channels PCB Layers Doulbe layers TOPOLOGY SMD Chipset IR 2092 F/R CH 4 OHM Power Output (CEA) 4x120w 2 OHM Power Output (CEA) 4x200w 4 OHM Bridged Power Output (CEA) 2x300w TOTAL HARMONIC DISTORTION 1% F/R CH Power Max @ 12.6 VDC - 4 OHM Stereo 4x100w Power Max @ 13.8 VDC - 4 OHM Stereo 4x110w Power Max @ 14.4 VDC - 4 OHM Stereo 4x125w Power Max @ 12.6 VDC - 2 OHM Stereo 4x135w Power Max @ 13.8 VDC - 2 OHM Stereo 4x140w Power Max @ 14.4 VDC - 2 OHM Stereo 4x155w Power Max @ 12.6 VDC - 4 OHM Bridged 2x235w Power Max @ 13.8 VDC - 4 OHM Bridged 2x245w Power Max @ 14.4 VDC - 4 OHM Bridged 2x260w INPUT SENSIVITY: 0.2-5V SIGNAL/NOISE RATIO 98dB GAIN RANGE: 6-0.2 X-OVER RANGE: 50-5000Hz X-OVER RANGE: 20-4000Hz Subsonic FREQUENCY / OPERATION EFFICIENCY: 81% Full Power THERMAL TIME 45 Min DAMPING FACTOR >200 FREQUENCY RESPONSE 20-20KHz BASS BOOST / PROTECTION SYSTEM: Over voltage/thermal/short circuit protection MINIMUM SUPPLY VOLTAGE: 9V MAXIMUM SUPPLY VOLTAGE: 16V IDLE CONSUMPTION @ 12,6 VDC: 2A MUSIC MAX. CONSUMPTION @12,6VDC: 35A FUSE SIZE: 2x40A
