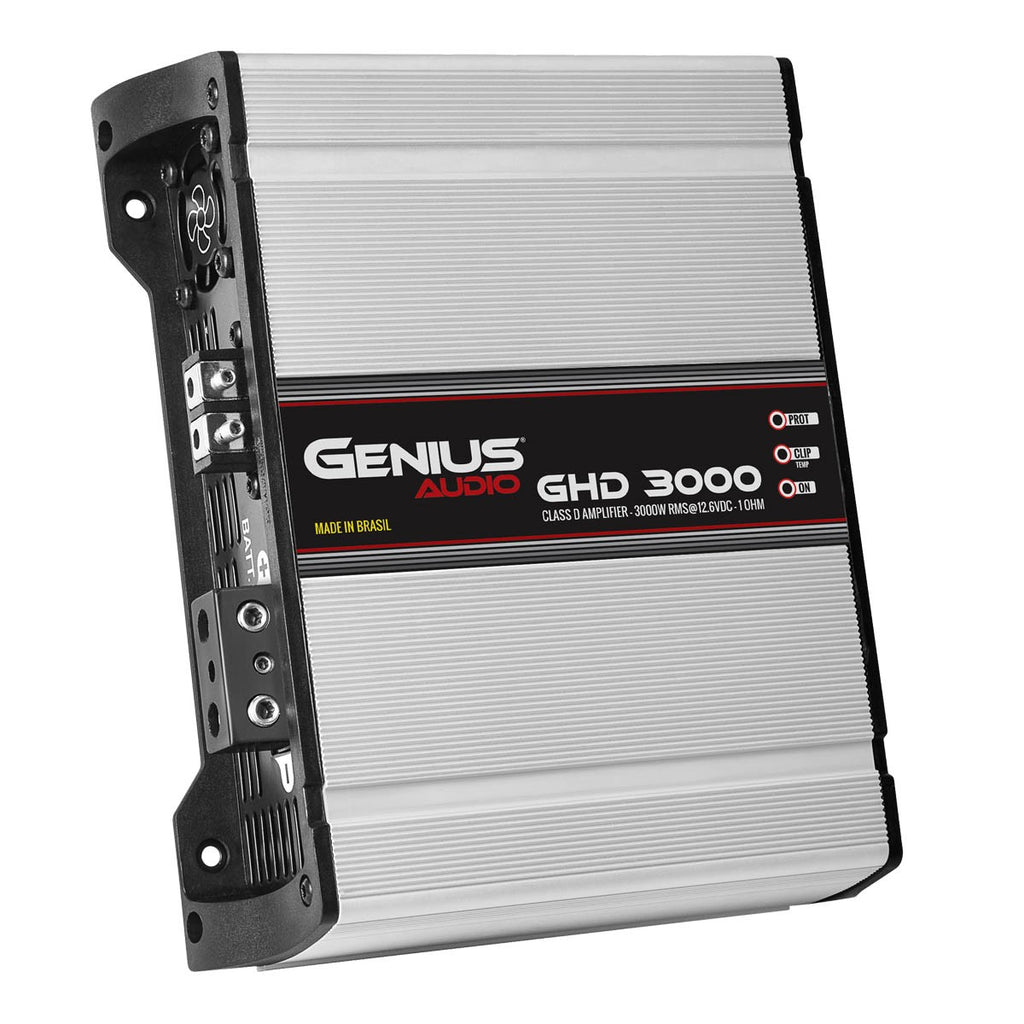

Genius Audio's line of GHD3000 Brazilian amplifiers is manufactured with the highest technology providing high performance in any type of scenario. This monoblock amplifier is stable under 1 Ohm minimum and allows you to configure any type of speaker by choosing the desired configuration whether it is low, high or full range. This monoblock amplifier allows you to enjoy its great 3000W RMS, and has a high quality power supply which provides voltage stability in all areas of the electronic circuit. It also has a medium chassis and four fans that helps to manage and dissipate the work temperature, and comes with a power connector for "0" wires (preferably 100% copper), and a speaker output connector for "8" or "10" wires as well as a built-in equalization system and clipping control.
Class D - Amplifier - 3000wRMS NUMBER OF CHANNELS: 1 MAXIMUM OUTPUT POWER @ 13.8VDC - 1 OHM: 3598W RMS MAXIMUM OUTPUT POWER @ 13.8VDC - 2 OHMS: 2446W RMS MAXIMUM OUTPUT POWER @ 13.8VDC - 4 OHMS: 1403W RMS MAXIMUM OUTPUT POWER @ 13.8VDC - 8 OHMS: - MAXIMUM OUTPUT POWER @ 12.6VDC - 1 OHM: 3000W RMS MAXIMUM OUTPUT POWER @ 12.6VDC - 2 OHMS: 2040W RMS MAXIMUM OUTPUT POWER @ 12.6VDC - 4 OHMS: 1170W RMS MAXIMUM OUTPUT POWER @ 12.6VDC - 8 OHMS: - INPUT SENSITIVITY: 250mV @ (-9.78 dBm) TOTAL HARMONIC DISTORTION (THD): 0.3% SIGNAL-TO-NOISE RATIO: >95dB FREQUENCY RESPONSE: 10Hz to 15KHz CROSSOVER: H.P.F (HIGH-PASS FILTER): 10Hz to 80Hz(-12dB/Octave) Variable L.P.F (LOW-PASS FILTER): 80Hz to Full(-12dB/Octave) Variable BASS BOOST: 0 to 10dB (50Hz) EFFICIENCY: 73% INPUT IMPEDANCE: 18K OHMS PROTECTION SYSTEM: Short-Circuit to Output/High/ Low supply voltage MINIMUM SUPPLY VOLTAGE: 9VDC MAXIMUM SUPPLY VOLTAGE: 16VDC IDLE CONSUMPTION: 1.70A MAXIMUM MUSICAL CONSUMPTION @ 12.6VDC: 170A MAXIMUM CONSUMPTION SIGNAL (1 KHz) @ 12.6VDC: 340A DIMENSIONS (WxHxD): 229 x 65 x 288mm WEIGHT: 3.11Kg ( 6.86lb)
